HUAYUAN 120A, 160A Air Inverter Plasma Cutting Machine Plasma Source For CNC Machine
1. Automatic compensation for grid fluctuation, cutting current is stable;
2. Cutting current up slope technology to reduce the wearing parts loss;
3. With fast cutting speed and high efficiency, the machine speed is 2~5 times faster than the traditional machine;
4. Good arc rigidity and cutting groove;
5. Cutting gas use the compressed air to reduce the cutting cost.
Parameters
| Item | Unit | MODELS |
| LGK-63IGBT | LGK-100IGBT | LGK-120IGBT | LGK-200IGBT | LGK-300IGBT | LGK-400IGBT |
| Input Power | V/Hz | 3~ 380V± 15% 50/60 Hz |
| Rated Input capacity | KVA | 9.5 | 17.8 | 22.2 | 38.8 | 70.1 | 93.5 |
| Rated Input Current | A | 14.5 | 27 | 34 | 71 | 100 | 138 |
| Rated Open Circuit Voltage | V | 300 | 300 | 300 | 315 | 380 | 380 |
| Rated Cutting Current | A | 63 | 100 | 120 | 200 | 300 | 400 |
| Rated Cutting Voltage | V | 106 | 120 | 128 | 160 | 200 | 200 |
| Current Adj Range | A | 30~63 | 30~100 | 30~120 | 40~200 | 60~300 | 60~400 |
| Max Cut Thickness(Steel) | mm | 25 | 40 | 45 | 65 | 80 | 90 |
| Quality Cutting Thickness(Steel, hand-held) | mm | 0.3~12 | 0.3~22 | 0.3~25 | 1~45 | 1~50 | 1~50 |
| Quality Cutting Thickness(Steel, machine) | mm | 6 | 12 | 15 | 25 | 35 | 40 |
| Plasma gas | -- | Compressed Air |
| Air Pressure | Mpa | 0.3~0.5 | 0.4~0.6 | 0.45~0.6 |
| Output Signal of Arc Voltage | -- | 1: 1 / 1: 20 1: 50 / 1: 100 Arc Voltage |
| Cutting Torch Cooling Mode | -- | Air cooling | Air cooling/Water cooling |
| Rated Duty Cycle | % | 60(40° C) | 100(40° C) |
| Insulation Grade | -- | F |
| Protection Grade | -- | IP21S |
| Dimensions(L× W× H) | mm | 585x280x485 | 695x320x580 | 800x380x810 | 890x420x900 |
| Power Source N. W. | kg | 26 | 51 | 52 | 82 | 140 | 145 |
Company information
Beijing Seigniory NC Equipment Co.,Ltd is a professional manuafacturer and exporter of CNC cutting machine. we have been in this CNC filed for more than 14 years. Our main products includes portable CNC,gantry CNC, CNC plasma table for metal sheet and steel pipes.
Since the estabilsh of our company, we have been sticking to the path of specialization and had many engineering technology staff members.
Our machines are widely used in automotive manufacturing, shipbuilding, fan manufacturing,mining equipment, steel processing, advertising cutting, enginerring machiney, agricultural machinery and other machinery manufacturing industry.
So far we have exported to many countries like Russia, France, UK, Peru,, Mexico, USA, South Africa, Australia, Thailand, Malaysia, India and so on.
Our advantage
Our certificate
Shipping & packing
FAQ
Q1: Are you a trading company or manufacturer?
A: we are a professional manufacturer of CNC cutting machine for 14 years.
Q2: Do you accept OEM for customer’s brand?
A: yes, we can do OEM. But we need MOQ for mass production.
Q3: What’s the delivery time?
A: The delivery time depends on machine model and quantity, you can directly contact us for more information.
Q4: What’s the payment terms for a new customer?
A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in advance by T/T, the rest be paid before delivery.
Q5: What kind of package do you use?
A: Plywood case, fumigation-free.
Q6: I know nothing about this machine, what kind of machine i should choose?
A: Very easy to choose. Just tell us what you want to do by using CNC cutting machine, the cutting size and thickness, and then let us give you perfect solutions and suggestions. Feel free to contact us!
Looking forward to any of your inquiry!
Product Tags:
|
|

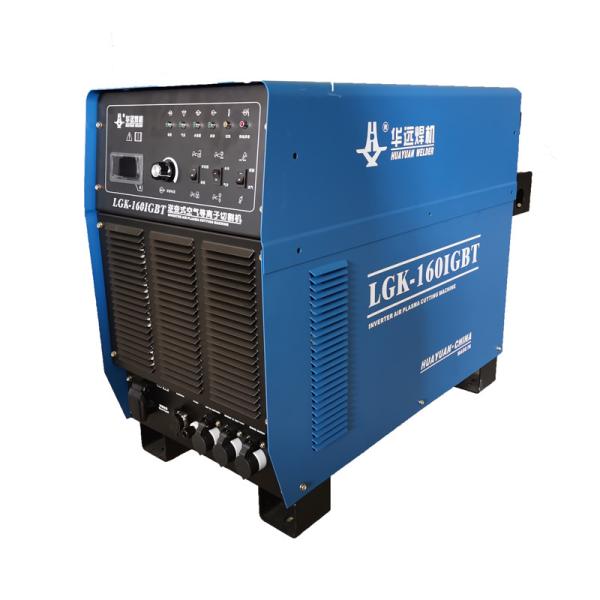

Blue LGK 160 Plasma Cutter 160A Igbt Inverter Air Plasma Cutting Machine Images
|
