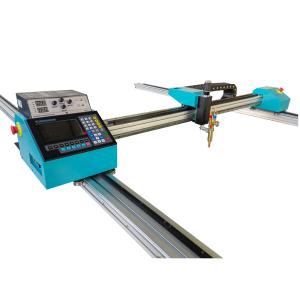

2030 1530 CNC Plasma Cutter Mini Type Portable Gantry Plasma Cutting Machine
Brief Description
1. This aluminum profile gantry CNC Cutting Machine can cut any complex plane figures , equip with stepper motor and double side drive, It can match both flame torch and plasma cutter.
2. Its design is compact and its structure is rational, which makes it lightweight, and easy to move. It is applicable both indoors and outdoors.
It is simple and efficient in drawing, nesting and cutting because of the installation of Fast CAM cutting software.
3. It is an ideal CNC Cutting Machine for small, medium scale enterprises.
4. It is used in industry field widely. It can cut and blanking metal plates such as carbon steel (flame cutting), stainless steel, copper and aluminum (plasma cutting).
Technical Data
| Name | CNC cutting machine metal |
| Working area | 1500*3000mm, can be customized as per client's requirements. |
| CNC controller | Starfire SF-2100C or F2100B, 7.0 inch |
| Torch height control | Starfire SF-HC25B or Fangling F1621 auto torch height control for plasma |
| Motor | Step motor |
| Drive mode | Dual drive |
| Cutting thickness | 6-120mm(flame), 2-20mm(plasma, depends on plasma source) |
| Cutting speed | 0-6000mm/min(plasma),0-700mm/min(flame) |
| Nest software | FASTCAM/STARCAM/HINEST |
| Rail for X axis | Linear rail |
| Cutting mode | plasma+gas(oxyfuel) |
| Plasma source | HUAYUAN Or MISNCO 100A, 120A, 160A, optional |
Machine advantages
1. For the rack, other suppliers use 12*12mm, we use 15*15mm, more wear-resisting and more durable.
2. Round rail for Y axis, other suppliers use Ø12 rail; what our machine uses is Ø16 rail.
3. Rail for X axis, what our machine uses is linear rail, more wear-resisting and with higher precision than others.
4. Aluminum profile: for other suppliers, it is empty inside the profile; for our machine: there's tension bard inside the profile, no deformation.
Application
Portable gantry CNC plasma cutter can cut mild steel, high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal, etc.
It is widely applied in industries such as automobile, shipbuilding, machine tools, pressure vessels, engineering machinery, mining machinery,electric power, building bridges, steel Industries.
Product Configuration
FAQ
Q1: Are you a trading company or manufacturer?
A: we are a professional manufacturer of CNC cutting machine for 14 years.
Q2: Do you accept OEM for customer’s brand?
A: yes, we can do OEM. But we need MOQ for mass production.
Q3: What’s the delivery time?
A: The delivery time depends on machine model and quantity, you can directly contact us for more information.
Q4: What’s the payment terms for a new customer?
A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in advance by T/T, the rest be paid before delivery.
Q5: What kind of package do you use?
A: Plywood case, fumigation-free.
Q6: I know nothing about this machine, what kind of machine i should choose?
A: Very easy to choose. Just tell us what you want to do by using CNC cutting machine, the cutting size and thickness, and then let us give you perfect solutions and suggestions. Feel free to contact us!
